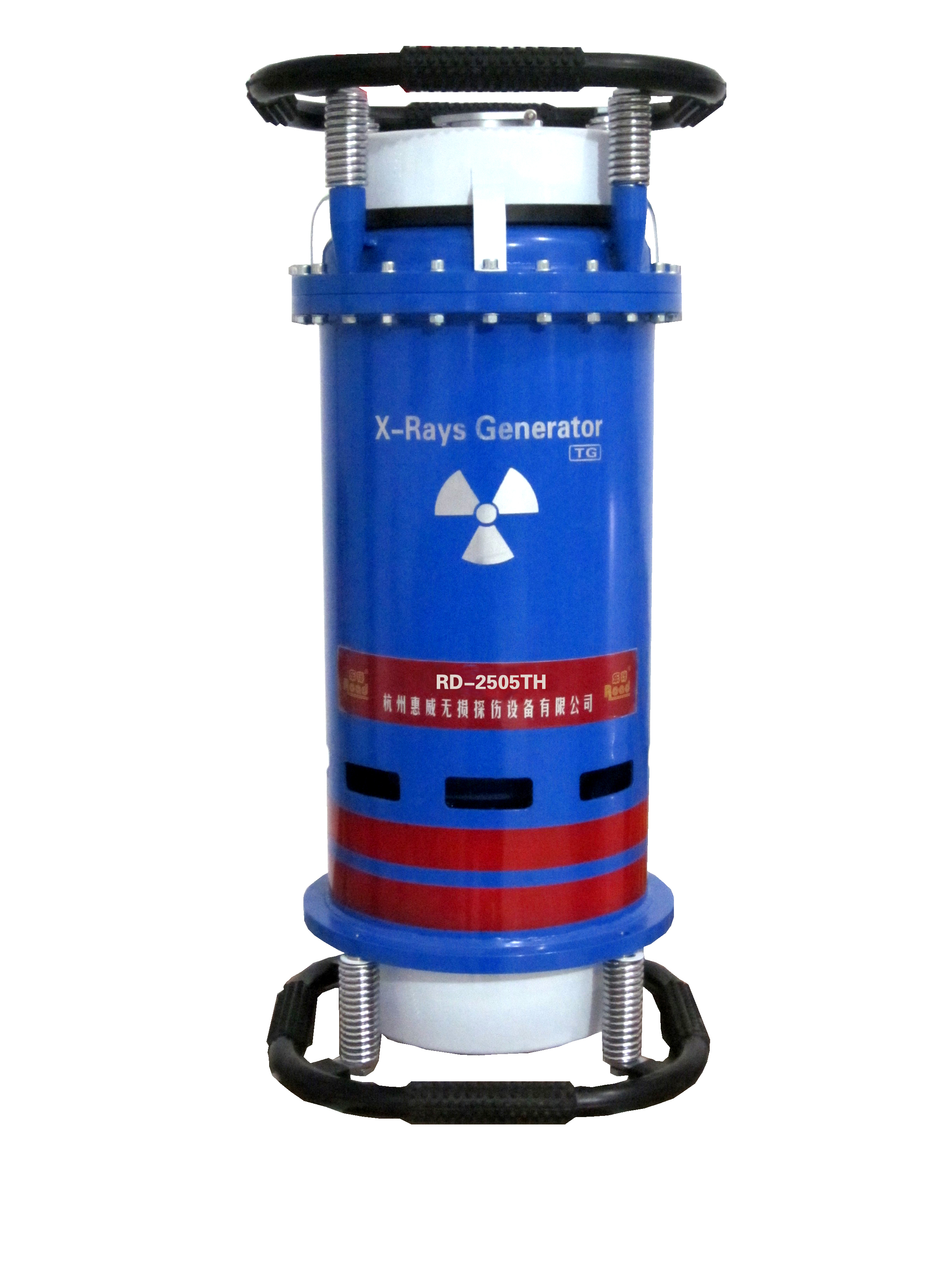

Industrial X Ray Ndt Testing Equipment RD-2505 X-Ray Flaw Detector
Main uses:
RD-2505 the technical parameters
|
| Project | RD-2505 |
| input | Input power | Single-phase 50Hz AC220V - 265V |
|
| Power supply capacity | No less than 2.0 KVA |
| output | X - ray tube voltage | 150~ 250 KVp |
|
| X ray tube current | 5mA |
|
| mA Stability degree | ± 1% |
| Ray tube | Focal size | 2.0× 2.0 |
|
| X-ray irradiation range | 40±5° |
| Ray generator | working pressure Cooling mode Insulation way | 0.45MPa ~ 0.5Mpa Anode ground connection radiator Strong wind cold Gas insulation SF6 |
|
| Size weight (kg) | Φ280×610 |
|
|
| 26 |
| Maximum penetration | Thickness steel A3(mm) | 40 mmFe(5 min) |
|
| condition | focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5 |
|
| sensitivity | superior 2% |
| controller | Size weight Circuit | 325×270×180 < 9(kg) Automatic control and protection |
| Environment | working temperature relative humidity Altitude | -30°~ +40° Not more than 85% Not higher 1500m |
| methods | fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins | |
